Introduction
TF-Luna is a single-point ranging solid state Lidar, based on ToF principle. With unique optical and electrical design, it can achieve stable, accurate and highly sensitive range measurement.

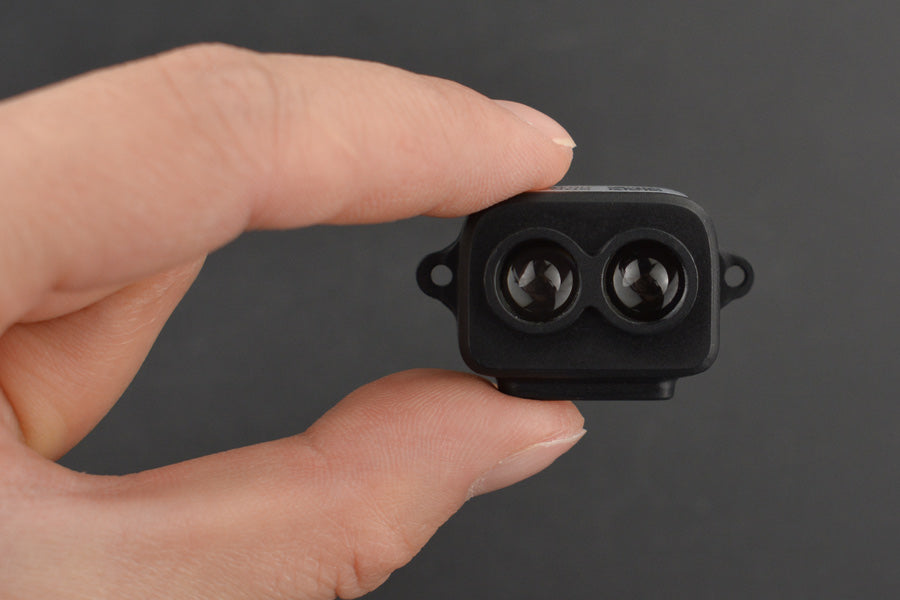

Small Size Design

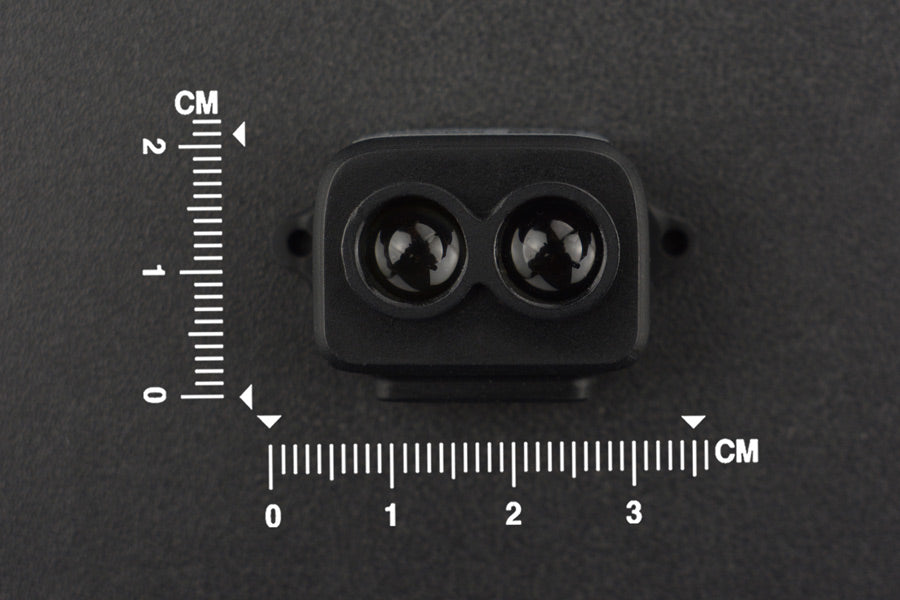

- Small Size: 35mm*21.25mm*13.5mm
- Light Weight: 5g
- Low Power: ≤0.35W
High Performance & Economical
This is a close-range, low-cost ToF single-point solid-state lidar with a range of 0.2m–8m. This solid-state lidar has high stability, high sensitivity, and high precision.
Detection distance
TF-Luna solid-state lidar's detection distance is up to 8m, the blind zone is 0.2m, and distance resolution is 1cm.
Minimum edge length of 3.5 cm within a detection distance of 1m;
Minimum edge length of 28 cm within a detection distance of 8m;
Easy to get start, high level of generality
The power supply voltage of TF-Luna lidar distance sensor is 5V, equipped with UART communication interface, the communication level is 3.3V. TF-Luna is compatible with Arduino, Raspberry Pi and other platforms.
Wiring Diagram of TF-Luna Solid State LiDAR and Arduino Uno
Wide Application Scenarios
- Robot: Robot obstacle avoidance, Robot anti-drop protection
- UAV: UAV obstacle avoidance, UAV altitude setting
- Smart City: Smart toilets, Smart trash bins
- Smart Retail: Smart ad trigger, Smart mirror trigger
TF-Luna is an economical solid-state lidar that is low-cost and can be widely applied to many development scenarios.
Specification
- Distance Resolution: 1cm
- Frequency: 100Hz
- Ambient Light Resistance: 70klux
- Detecting Range: 0.2~8m
- Weight: ＜5g
- FoV: 2°
- Supply Voltage: 5V±0.1V
- Data Interface: UART/ I²C
- Accuracy: ±6cm@(0.2m-3m)

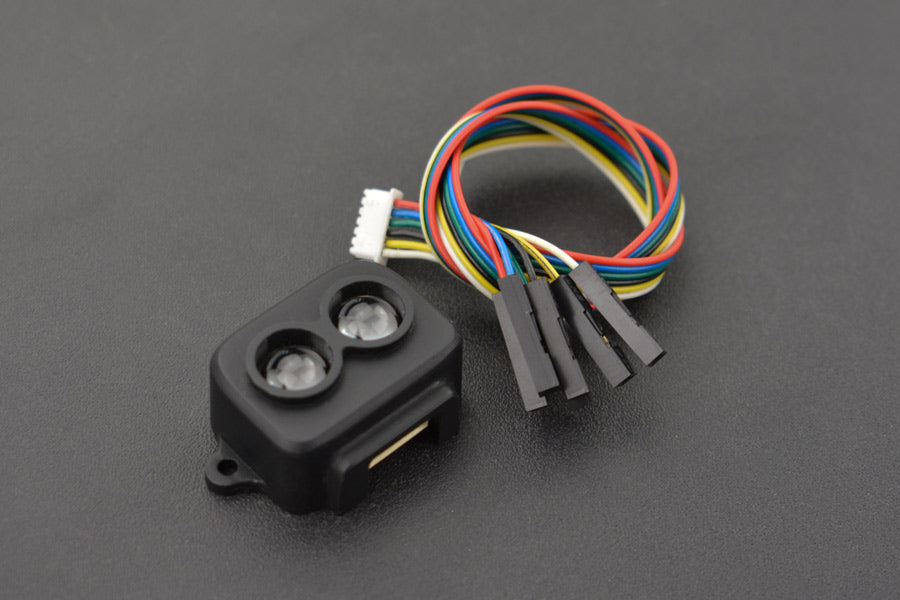

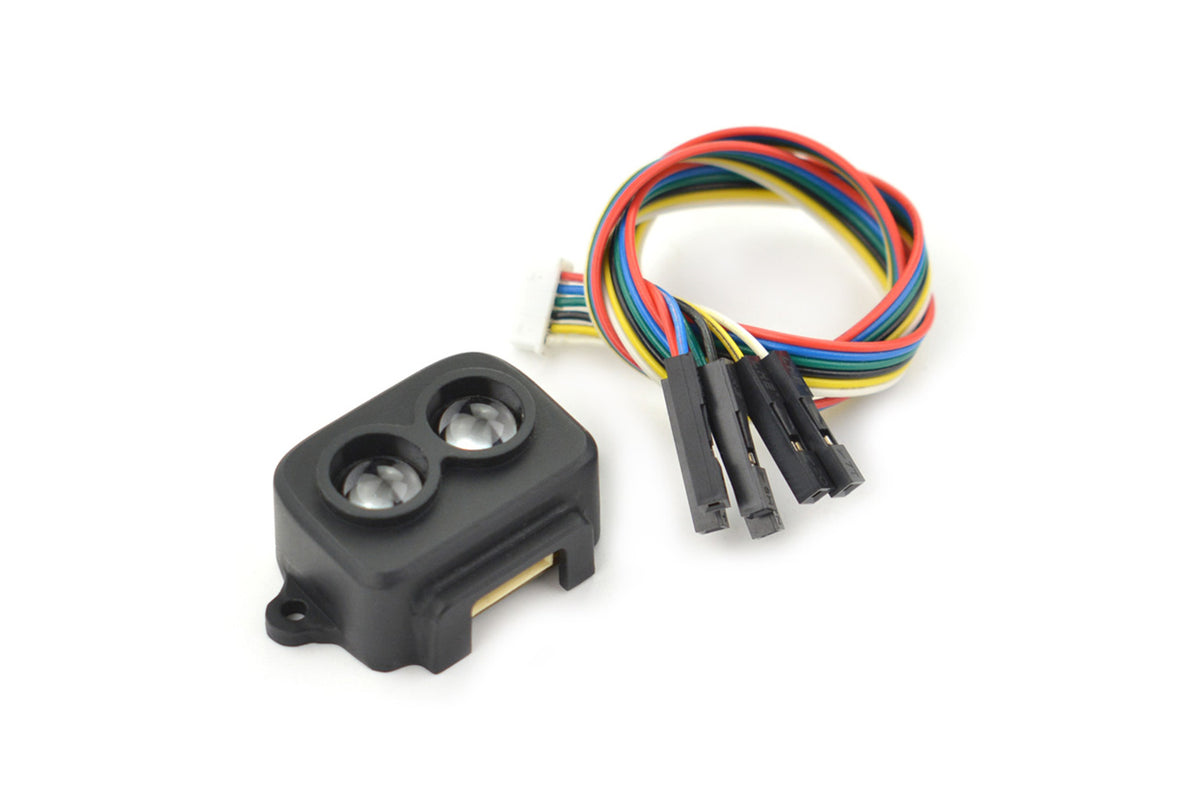

Shipping List
- TF-Luna LiDAR (8m) x1
- Wiring x1
