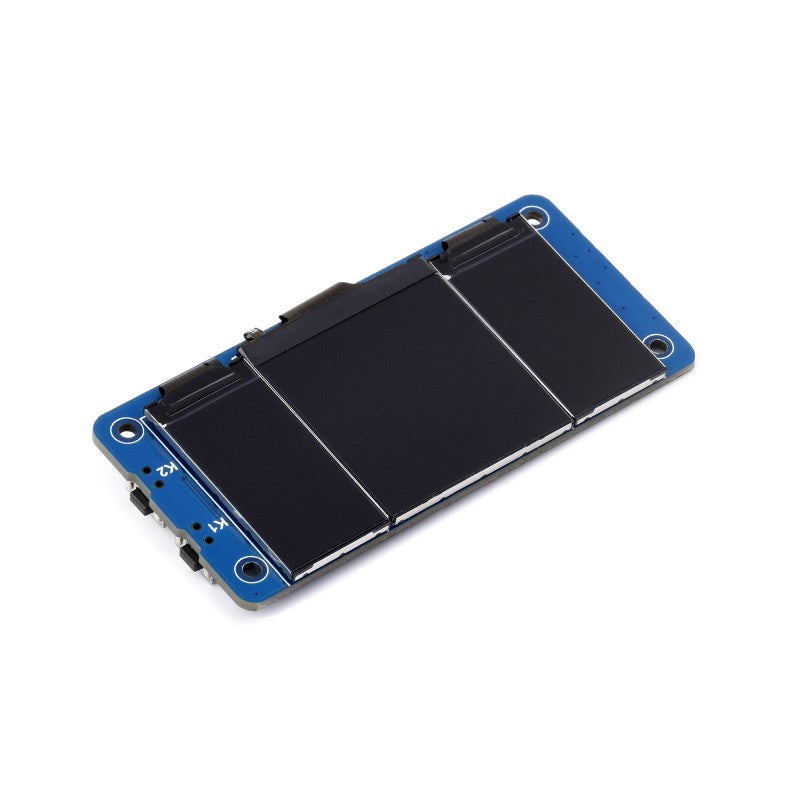

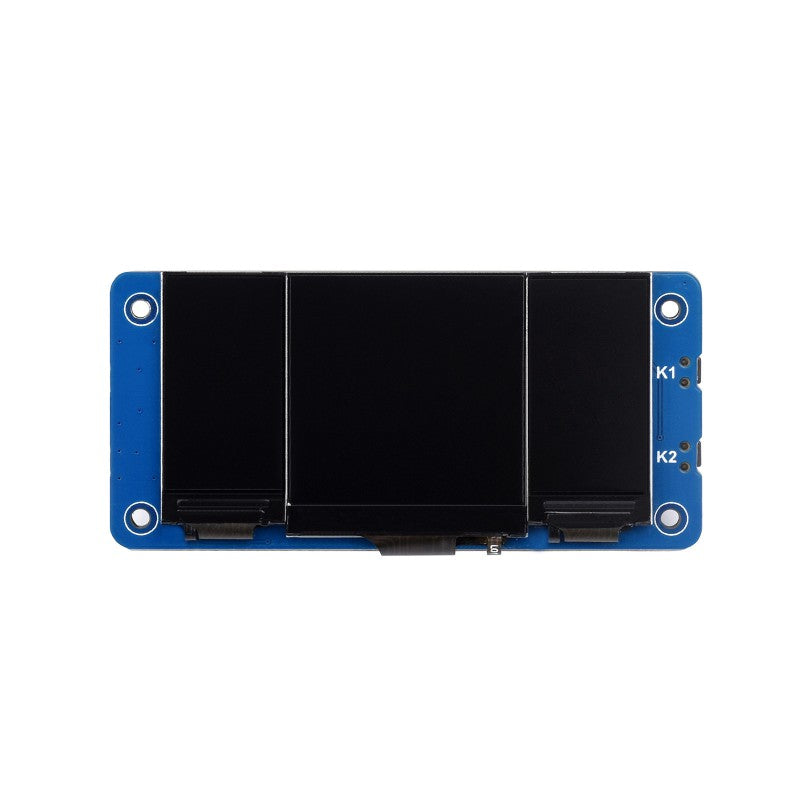

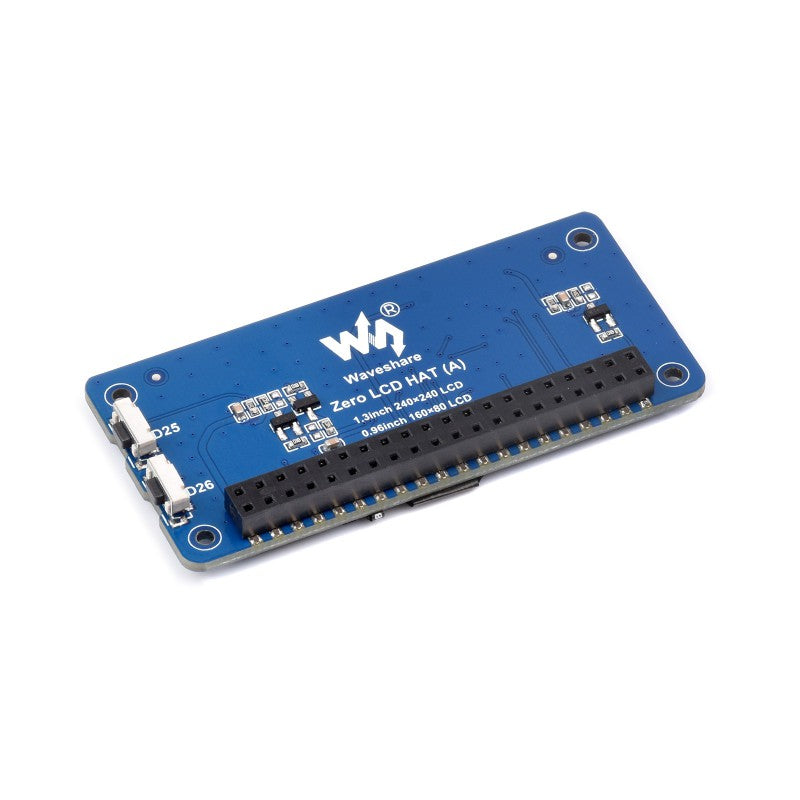

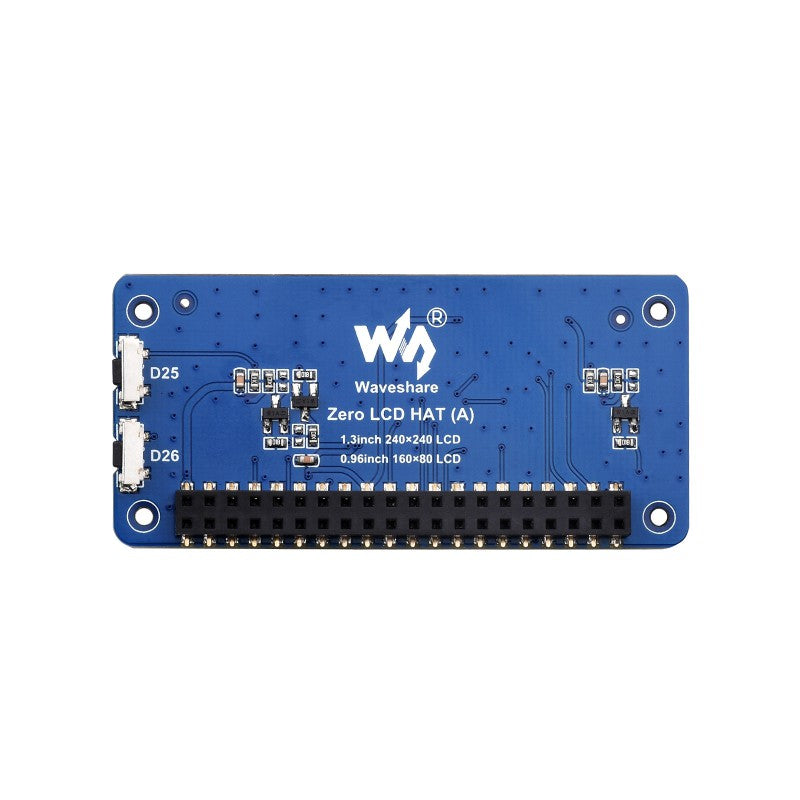

Triple LCD HAT For Raspberry Pi, Onboard 1.3inch IPS LCD Main Screen and Dual 0.96inch IPS LCD Secondary Screens, With 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards
Features

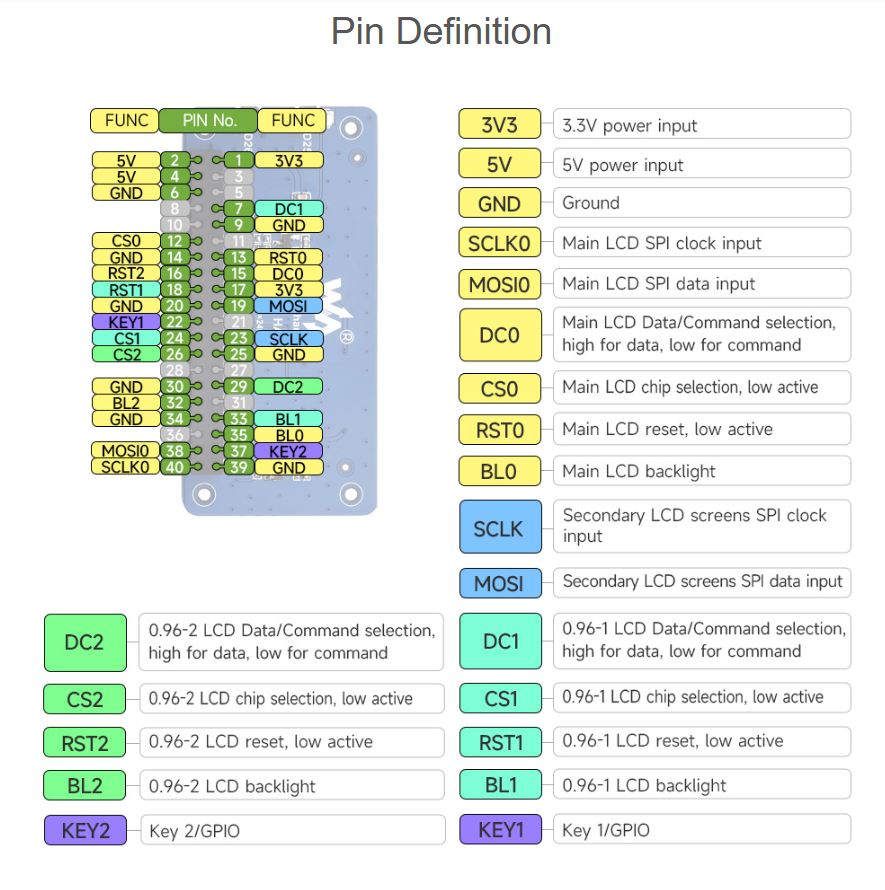

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
1.3inch IPS LCD Main Screen with built in ST7789 driver chip, SPI interface communication, wide viewing angle, supports 65K color display, 240×240 resolution

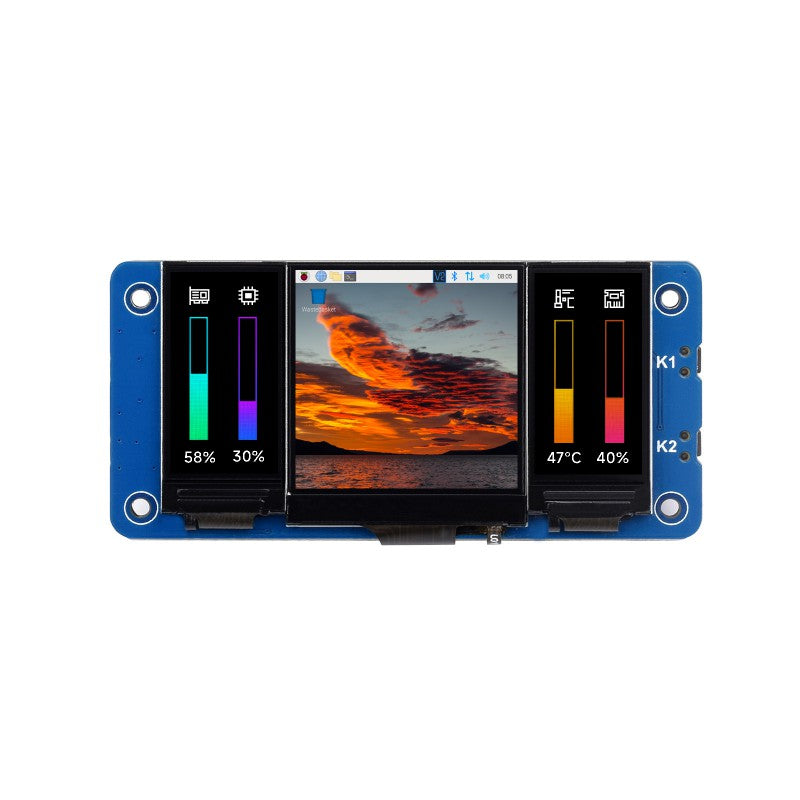

Dual 0.96inch LCD secondary screens with built in ST7735S driver chip, SPI interface communication, supports 65K color display, 160×80 resolution, can be used to display key informations, status indicator messages or small graphics
Onboard 2x user-defined keys for extended applications
Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)
