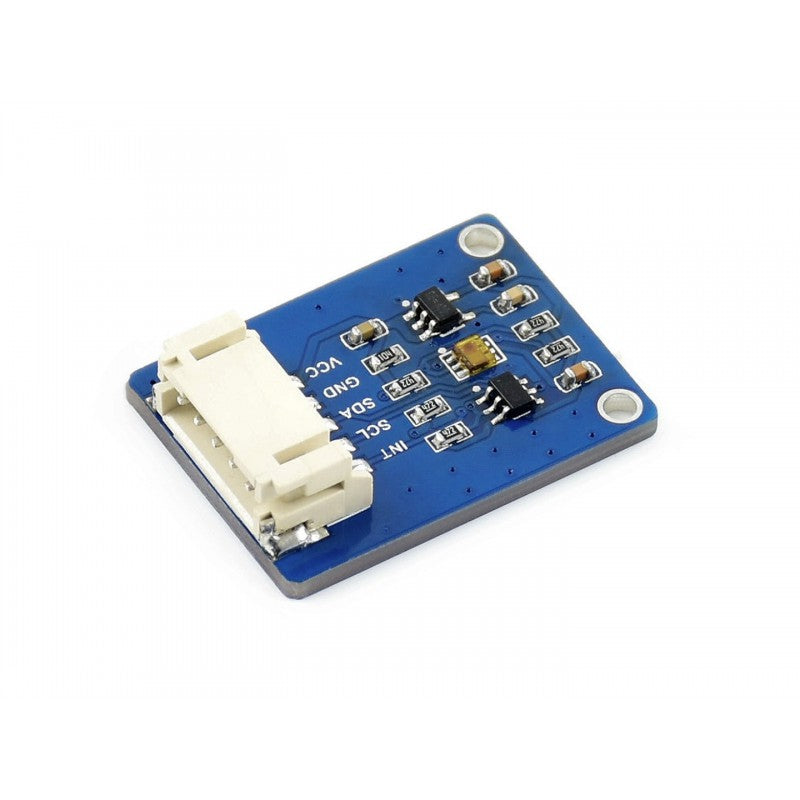

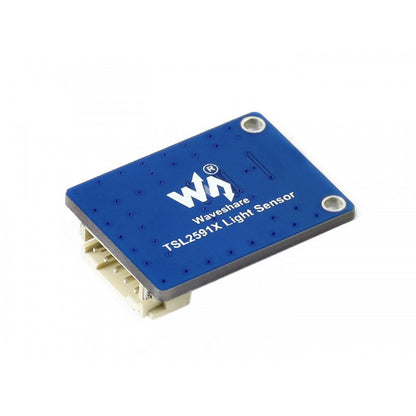

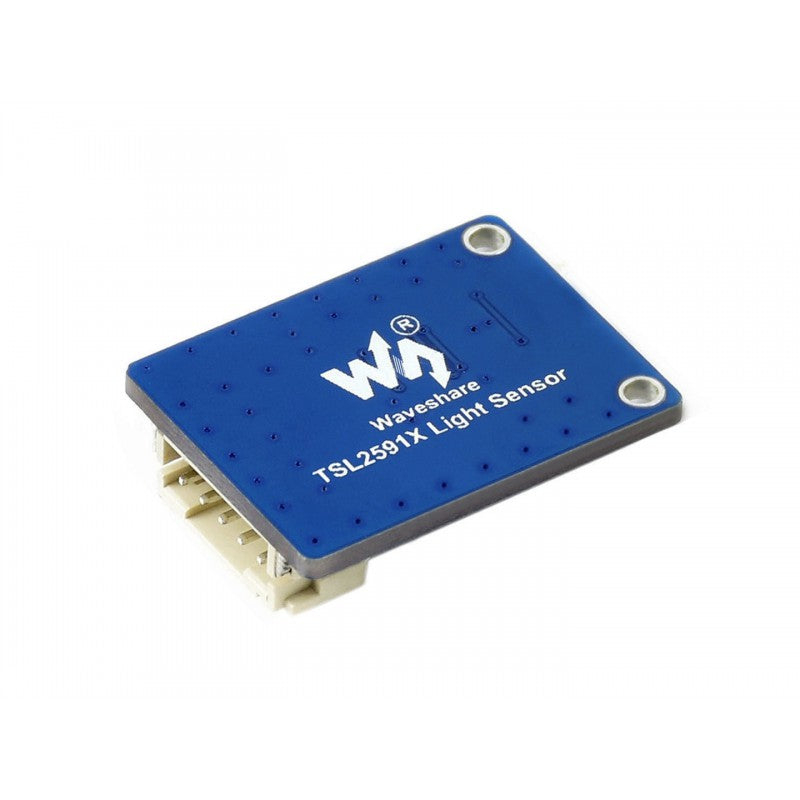

TSL25911 High Sensitivity Digital Ambient Light Sensor, I2C Interface

TSL25911 High Sensitivity Digital Ambient Light Sensor, I2C Interface

SKU:E31002-001

Regular price $10.31 AUD
Regular price Sale price $10.31 AUD
Sale Sold out
Shipping calculated at checkout.

• Shipping cost $8 within AU, more details

• Returns accepted for defective items, more details.

• Shopping Inquiry: contact@mlab.com.au

Quantity
In Stock: Oversea (7–10 business days Lead Time)
View full details

Introduction

This module is an ambient light sensor with TSL25911 as its core. It can sense the ambient light intensity around and output it through the I2C interface. The output data uses a formula to derive the illuminance in lux (ambient light intensity) to approximate the human eye response.

Features

  • Adopts TSL25911FN, measures infrared plus visible light (wider range than TSL2561)
  • Embedded ADC, direct light intensity signal output to I2C interface, less noise jamming
  • High sensitivity up to 188uLux, wide dynamic range up to 600M:1
  • Embedded infrared-responding photodiode, allows precise measuring even on strong infrared noise environment
  • Provides interrupt output with programmable upper and lower thresholds
  • Onboard voltage translator, compatible with 3.3V/5V operating voltage
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Light sensor: TSL25911FN
  • Communication interface: I2C (constant address: 0x29)
  • Effective range: 0~88000Lux
  • Operating voltage: 3.3V/5V
  • Dimensions: 27mm × 20mm
  • Mounting hole size: 2.0mm

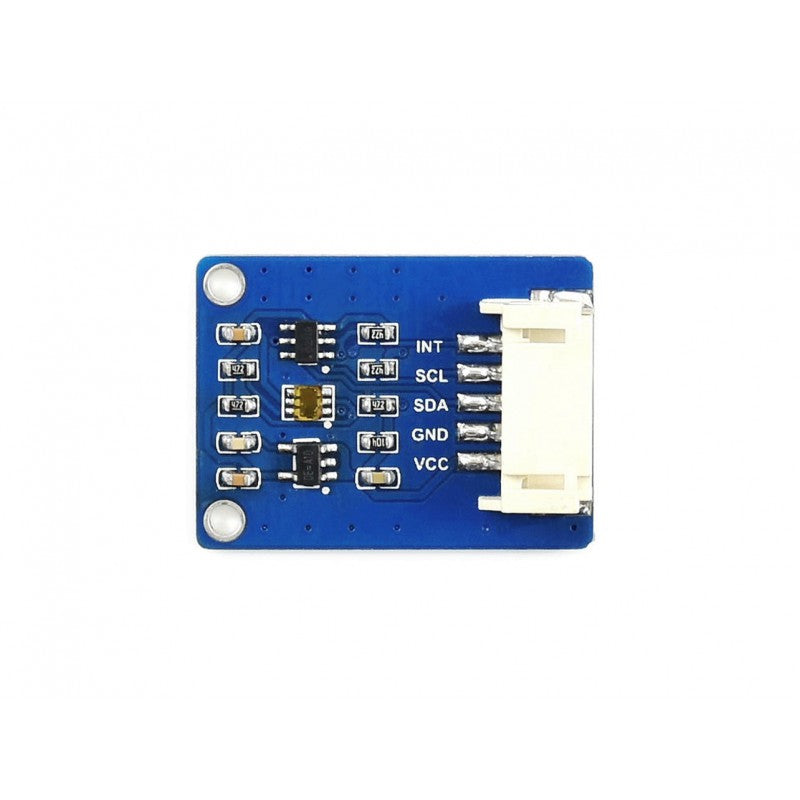

Pinouts

In the case of working with MCU:

  • VCC ↔ 3.3V / 5V
  • GND ↔ GND
  • SDA ↔ MCU.I2C data line
  • SCL ↔ MCU.I2C clock line
  • INT ↔ interrupt output, optional
