Description

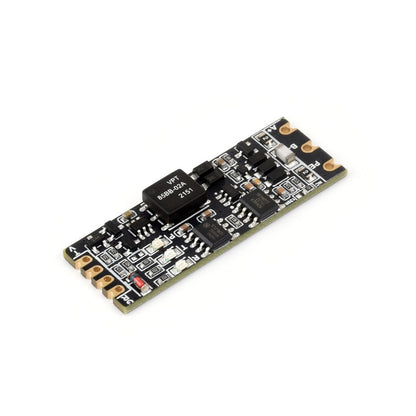

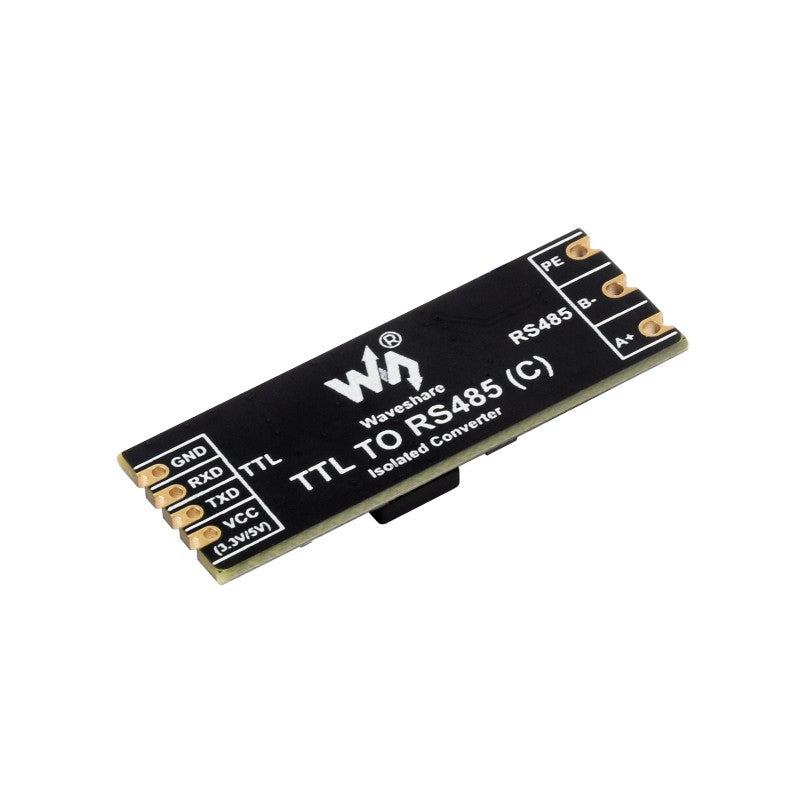

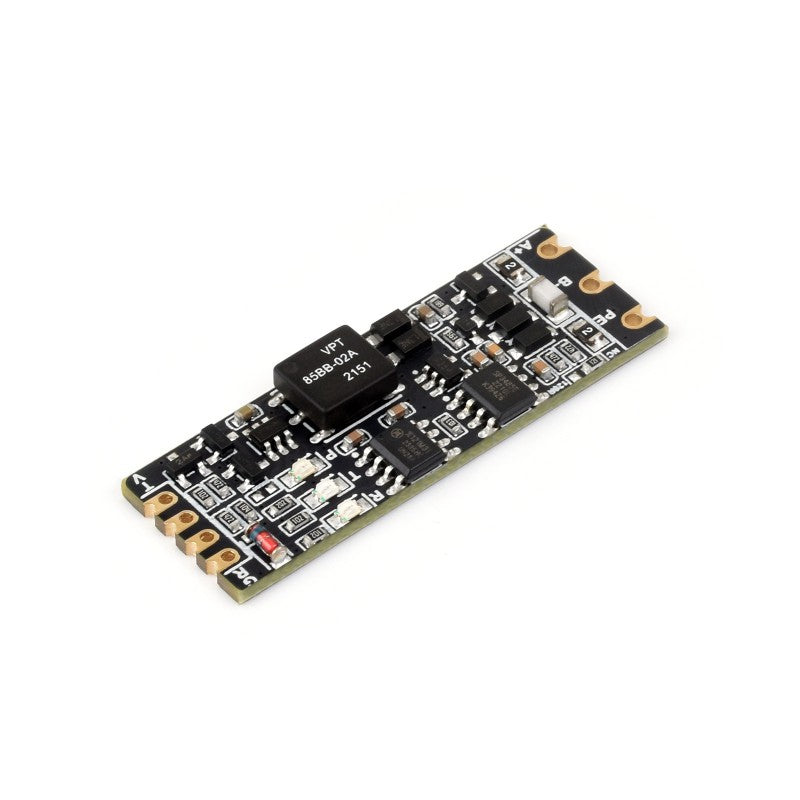

TTL TO RS485 (C) is a mini galvanic isolated TTL-to-RS485 serial converter.
- Compatible with TTL/RS485 standard, converting the TTL signal into differential RS485 signal, supports half-duplex communication.
- Compatible with 3.3V ~ 5V TTL signal level, provides over-voltage protection for power supply interface.
- Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal.
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic.
- Onboard self-recovery fuse and protection diodes, ensure the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock-proof performance.
- Onboard RS485 output terminal 120R resistor, enabled via soldering.
- Black immersion gold process design, compact size, easy to integrate.
