Description

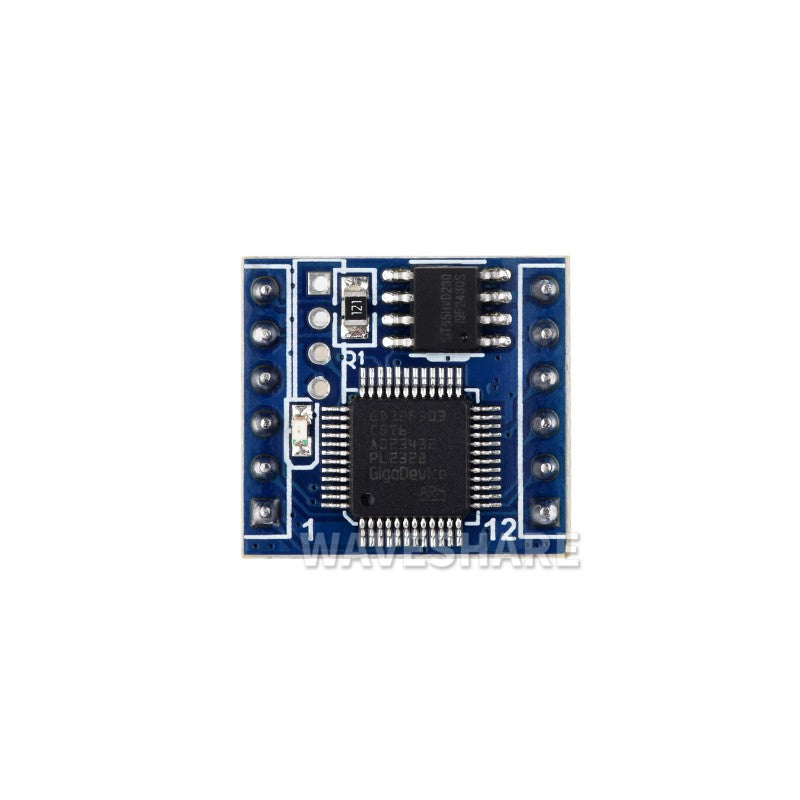

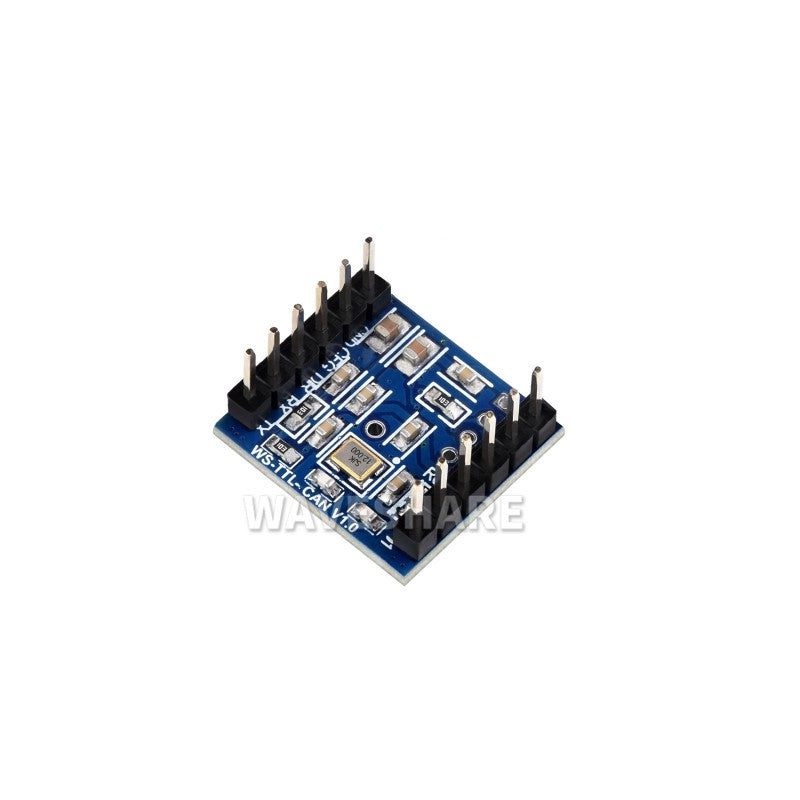

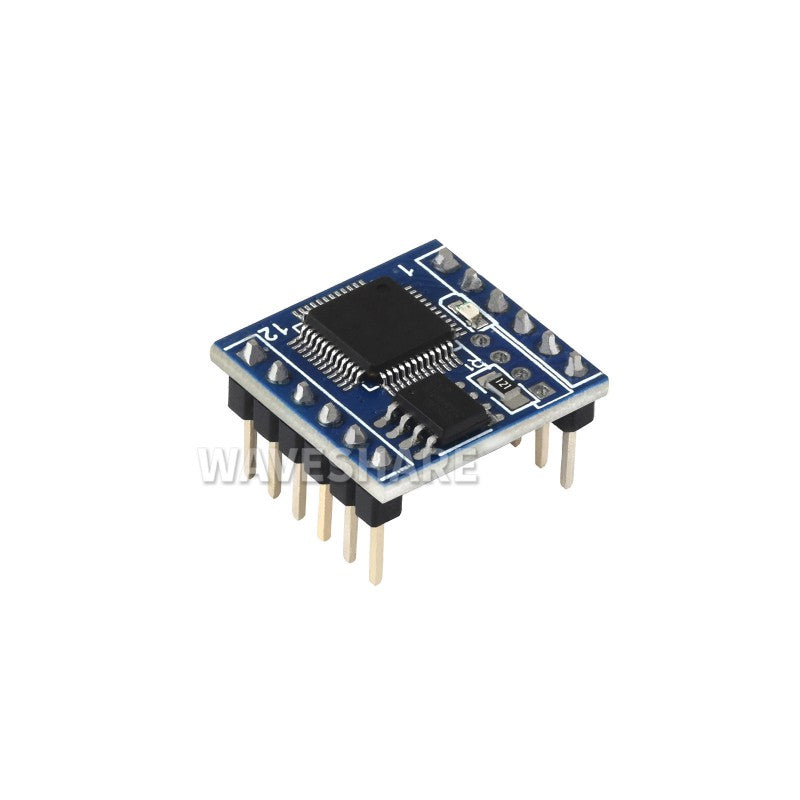

WS-TTL-CAN is a TTL UART to CAN module which is compact and easy to integrate, onboard high-performance MCU, with TTL and CAN conversion protocol, easily achieving UART to CAN via simple configuration. The CAN parameters (such as the baud rate) and serial port parameters of the device can be modified using the configuration software.
Features
- Support the bidirectional data communication between CAN and TTL.
- Supports device firmware upgrade via TTL, more convenient for firmware update and function customization.
- ESD Protection, Anti-surge Protection, Excellent EMC Performance.
- 14 groups of configurable filters.
- Four operation modes: transparent conversion, transparent conversion with identifiers, format conversion, and Modbus RTU protocol conversion.
- Offline detection and automatic recovery functionality.
- Compliance with CAN 2.0B specifications, compatible with CAN 2.0A; complies with ISO 11898-1/2/3 standards.
- Baud rate range: 10kbps ~ 1000kbps.
- CAN buffer capacity of 1000 frames to prevent data loss.
- High-speed conversion:At a serial port baud rate of 115200 and CAN rate of 250kbps, the CAN sending speed can reach up to 1270 extended frames per second (close to the theoretical maximum of 1309).
At a serial port baud rate of 460800 and CAN rate of 1000kbps, the CAN sending speed can exceed 5000 extended frames per second.
