Introduction
This fully integrated capacitive fingerprint sensor provides an efficient way for users to capture, process, store, and match fingerprints. Based on high-performance processor & semiconductor fingerprint sensor, it's equipped with built-in IDfinger6.0 fingerprint algorithm that enables it to complete fingerprint recognition independently. And when working with DFRobot Arduino library, the sensor can realize functions like fingerprint entry, deletion, and matching through UART. Also, upper computer software is provided to help users easily operate it.
This low-power sensor comes with a compact size and delicate appearance and offers fast recognition and high security. Moreover, it supports 360-degree view object recognition and deep self-learning.

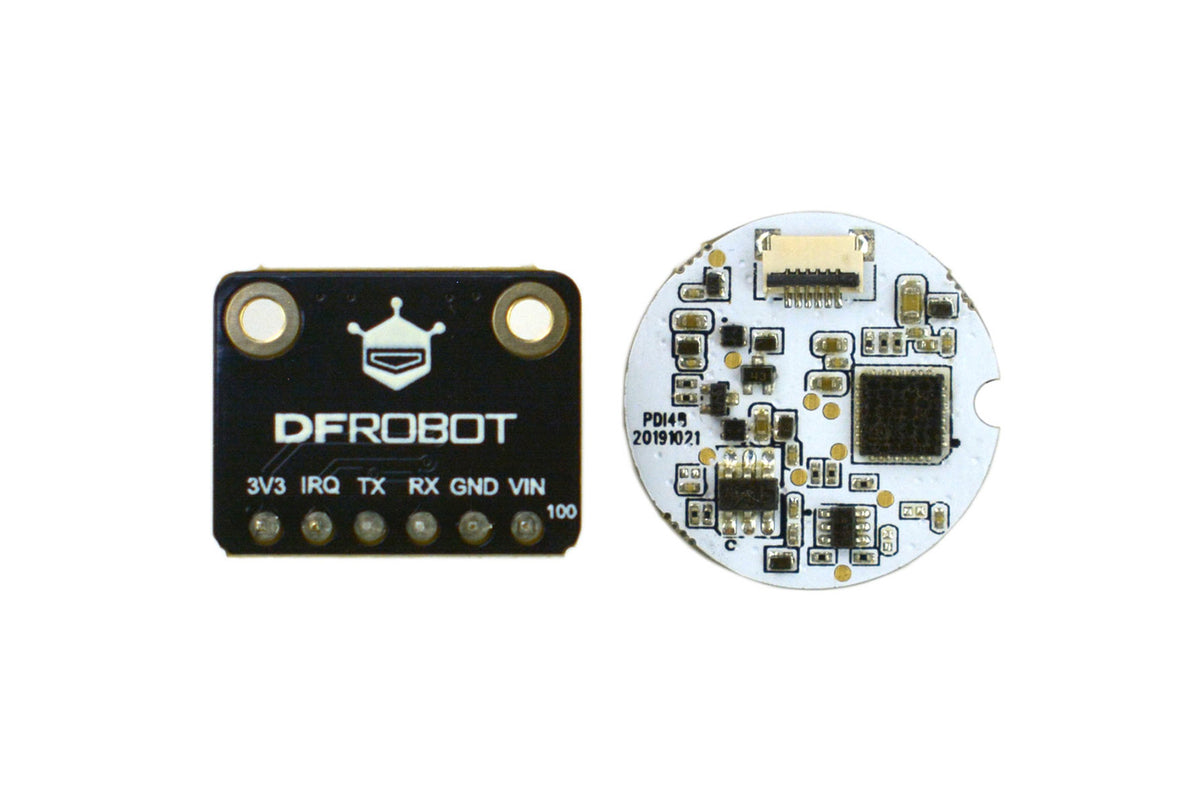

Board Overview
Features
- 360-degree fingerprint entry and matching
- Self-learning function
- Compact size, easy to install
Applications
- Fingerprint door lock
- Drawer Lock
- ID Recognition
- Authorization
Specification
- Operating Voltage: 3.3V
- Operating Current: ＜40mA
- Communication Method: UART
- Storage Capacity: 80 fingerprints
- 1: N Verification Time: ＜0.5S
- Pixel Resolution: 508dpi
- Number of Pixels: 160x160
- Operating Environment: -10 to 60℃ / 20% to 80%RH
- Dimension: diameter of 19mm/0.75"

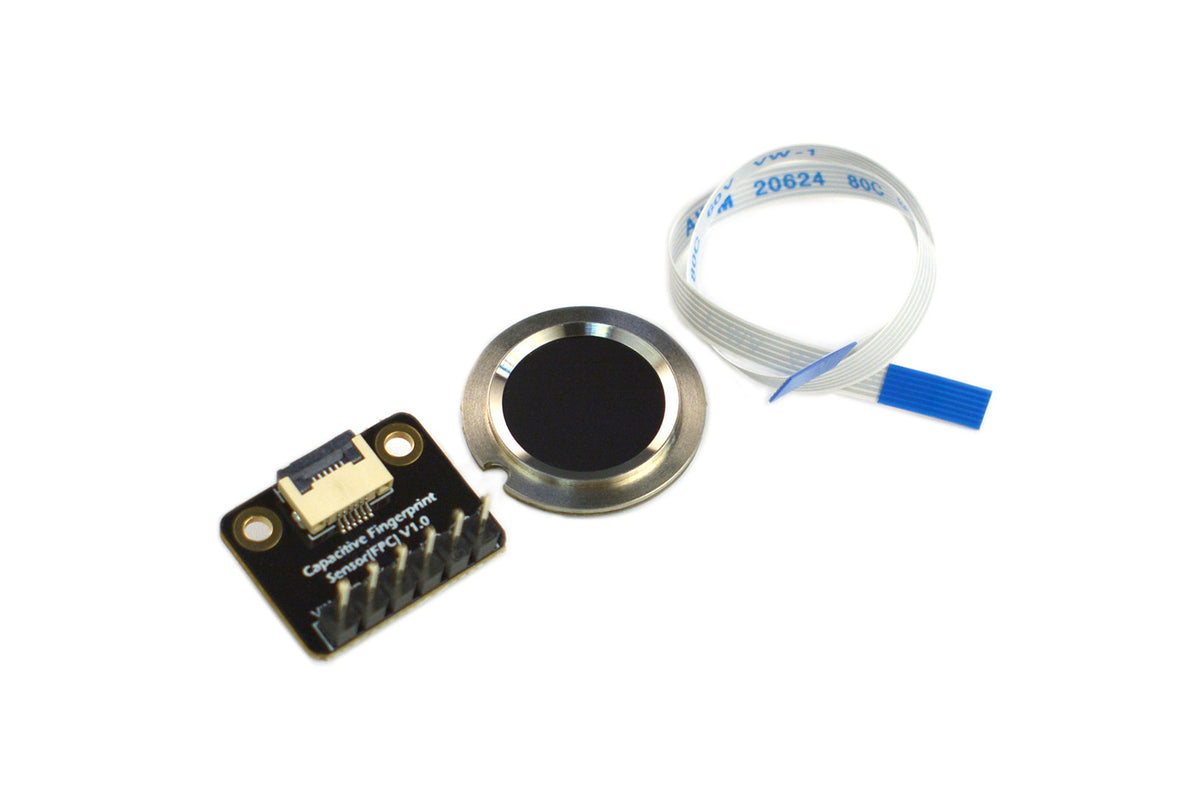

Shipping List
- UART Capacitive Fingerprint Sensor (FPC Connector) × 1
- 0.5mm-6Pin FPC Cable × 1
- FPC-Pin Header Adapter × 1
