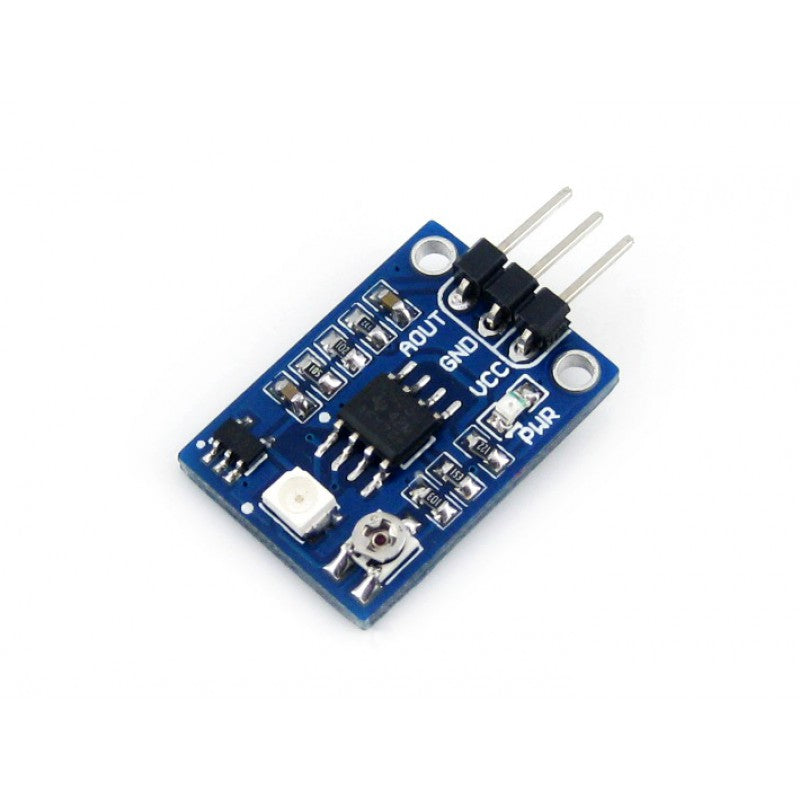

Output voltage boosts along with the ambient ultraviolet intensity increases
Onboard amplifier circuit with adjustable amplification factor
Specifications
Response spectrum: 200nm-370nm
Dimension: 22.0mm * 16.0mm
Mounting holes size: 2.0mm
Applications
Ultraviolet tester
Outdoor ultraviolet detector
Germicidal lamp
How to Use

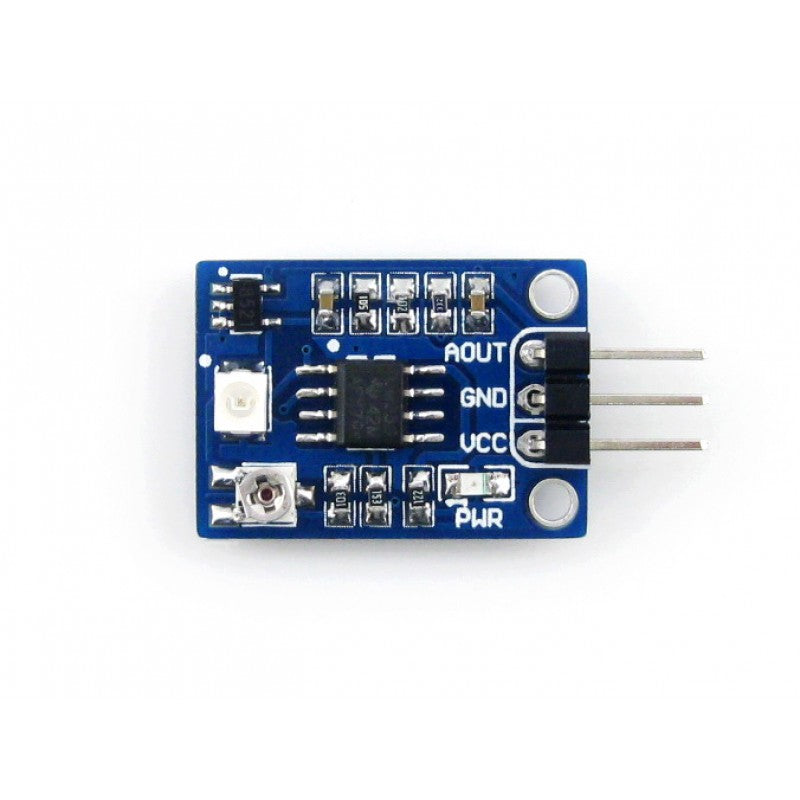

In the case of working with a MCU:
VCC ↔ 3.3V ~ 5.0V
GND ↔ power supply ground
AOUT ↔ MCU.IO (analog output)
