Description

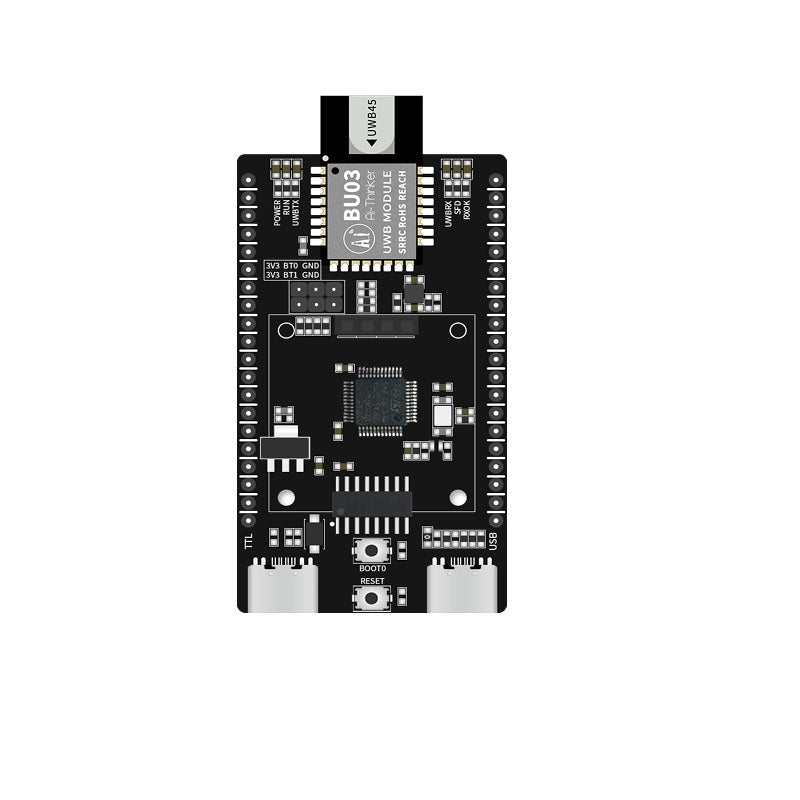

BU03-Kit is a UWB development board developed by Ai-Thinker Co., Ltd. The
development board is a test and evaluation board based on BU03 transceiver module and
equipped with an ST master. The BU03 module integrates the onboard antenna, RF circuit,
and power management. The BU03-Kit can be used in bidirectional ranging or TWR
positioning systems with positioning accuracy up to 10 cm and supports data rates of up to 6.8Mbps. It can be widely used in the Internet of Things (IoT), mobile devices, wearable
electronic devices, smart home and other fields.
Features
- Complieswith the IEEE 802.15.4-2015 UWB standard
- Complieswith the IEEE802.15.4z (BPRF mode)
- Channel5and channel 9 are supported
- Easyintegration without RF design
- Integrated MAC support
- TheuseofRTLSinfrastructure extends the range of communication
- Datarate 850 Kbps, 6.8 Mbps
- Supports bidirectional ranging and TWR and PDOApositioning schemes
- Provides accurate positioning and data transfer
- Positioning accuracy 10 cm
- Supports high label density
- Integrated HWAES256
- Supports the SPI interface
- 9GPIOavailable
- Programmable adjustment of the transmit power
- BU03modulepower consumption <1μAin sleep mode
- Suitable for button battery solutions
Specification

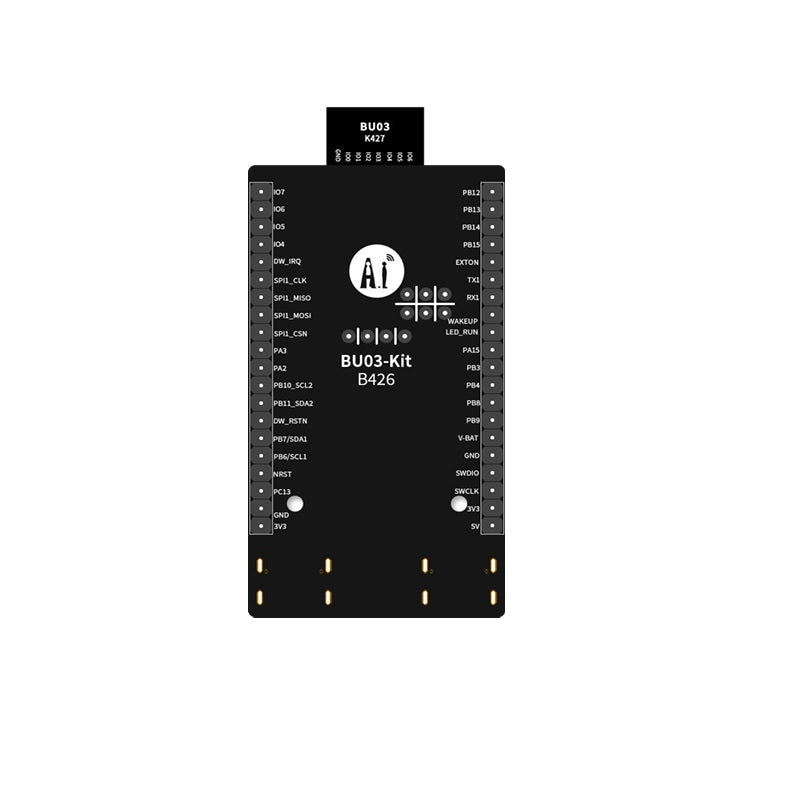

Pin Defintion
