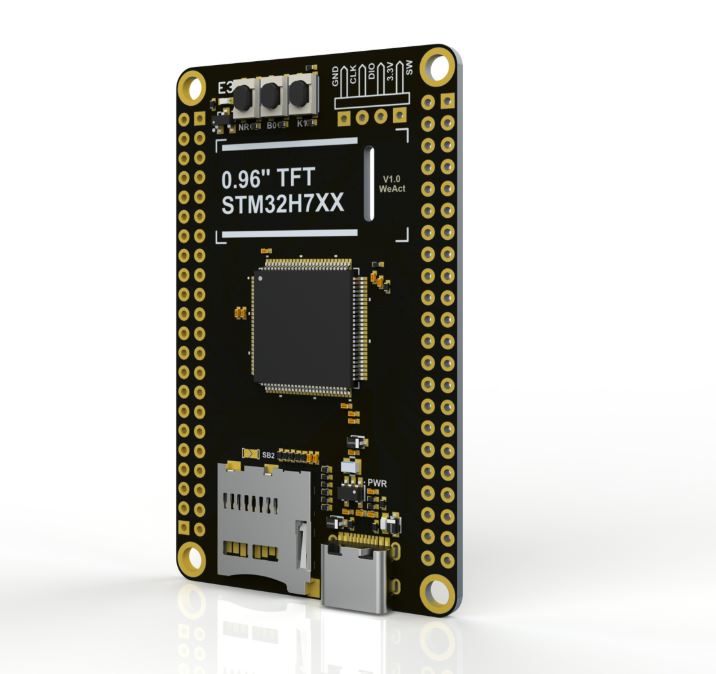

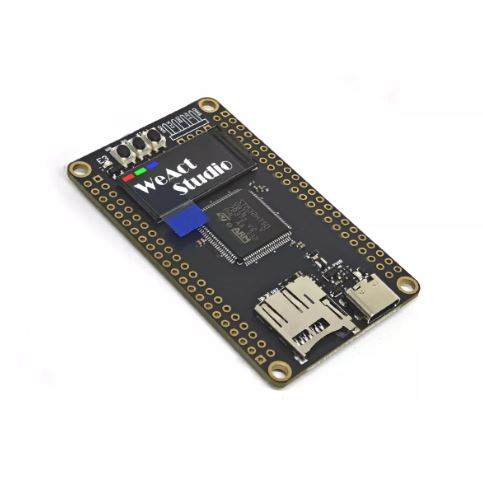

Description
1. STM32H750VBT6 480Mhz, 128KB ROM, 1MB RAM
2. ARM Cortex M7Architecture with FPU floating point unit, complete DSP instruction and memory protection unit MPU
3. 8MB SPI Flash, 8MB QSPI Flash(Executable program)
4. Gold sink TG155 plate, four layer plate design
5. Lead-free welding process is adopted
6. Use the button to set BOOT
7. Using high quality crystal vibration, metal shell, can be good vibration
8. Always use the original ST chip
9. USB C interface,Mirco SD card seat and buttons all do ESD protection, DCMI camera interface, with 1.5V and 2.8V power supply, no external transfer board, support auto focus function
10. Support for OMV4 development
11. Support C language development
Interface
- 2*22 pin 2.54mm IO x 2
- 4 pin 2.54mm SW debug x1
- USB type C x 1
- MicroSD card connector x1
- 8 bit DCMI interface x1
- User Key K1 (PC13) x1
- Reset Key NRST x1
- BOOT0 Key x1
