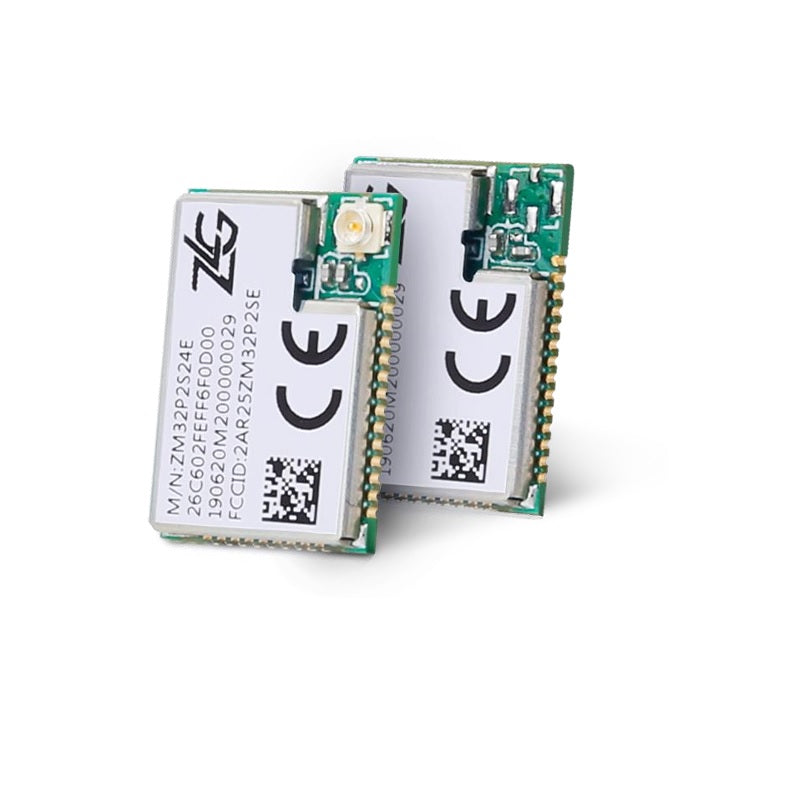

Description
The module features powerful hardware performance, with a maximum transmit power of 20 dBm and receiver sensitivity of -103 dBm, ensuring strong wall-penetration capability and a line-of-sight communication range of more than 3.3 km.
For Mesh networking, the module can automatically establish a network of 100 devices within 100 seconds. It also supports dynamic switching among short-address, long-address, and data-frame address communication modes, providing greater flexibility for different application scenarios.
Product Parameter
- Frequency: 2400~2483.5MHz
- Working Voltage: 1.95~3.8 V
- Receive Current: 13.5mA
- Sleep Current: 2.3uA
- Send Current: 74mA (average), 134mA (peak)
- Send Power: 19 dBm
- Receiver Sensitivity: -99dBm
- Data transimission rate: 250kbps
- Antenna interfaces: IPEX connector and castellated-hole pads
- Logic level: 3.3 V
- Communication interface: UART
- Supports sleep and wake-up modes
- Supports RS-485 direction control
- Operating temperature: -40°C to +85°C
- Supports Mesh self-forming networking
- Supports MAC address modification
- Supports three communication modes: short address, MAC address, and designated data address
Pin Assignment
Layout
Application
